Product description

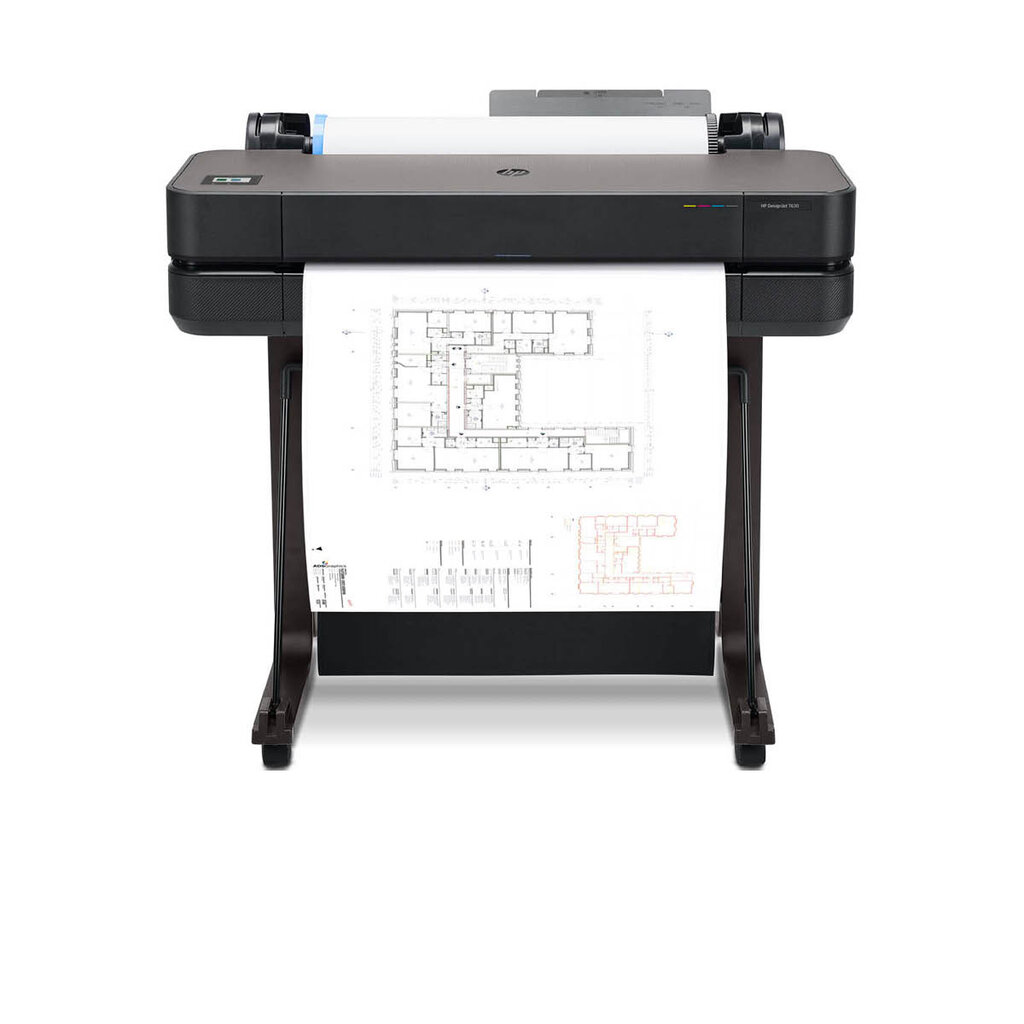

You load a 610 mm roll, click "print" on HP Click, and in half a minute your A1 drawing rolls out of the HP DesignJet T630 24-inch. This plotter fits in a studio or construction site and is designed for architects, engineers, and technical drafters who want to print clean CAD lines and presentations without relying on an external print agency.
Print quality and speed The T630 delivers line accuracy of ±0.1 percent and a resolution of up to 2400 × 1200 dpi. An A1 sheet appears in 30 seconds, supported by 1 GB of memory that effortlessly buffers large PDF files.
- A1 output: 30 s per sheet
- Line accuracy ±0.1%
- Four cartridges, pigment black for sharp text
One batch, the right paper source. With HP Click, you can send complete project folders in a single action. The HP DesignJet T630 selects the correct source once the size is recognized: A1 from the roll, A4/A3 from the input tray. Note: HP Click groups jobs by size, so the print order can change to save paper.
<ul>
<li>One-click job submission with HP Click</li>
<li>Automatic switching between roll and A4/A3 sheets</li>
<li>Can be used wirelessly, via Gigabit Ethernet and with USB</li>
</ul>
Ink Technology and Sustainability The chassis contains 30% recycled plastic and consumes less than 35W when printing, and <2.1W in sleep mode. Its ENERGY STAR design reduces routine ink consumption and lowers your carbon impact.
- Routine maintenance uses up to 95% less ink
- EPEAT Gold and ENERGY STAR certified
Data security HP Wolf Essential Security offers encrypted protocols, firewall management, and PIN release to prevent unauthorized access to your drawings.
These are the main differences with the HP DesignJet Studio Wood 24-inch
- Print speed: Studio Wood delivers A1 in 26 s, T630 in 30 s.
- Finish: Studio Wood has a wooden top plate and closed roller cover, T630 shows the roller open and has a plastic top plate.
- Sustainability: Studio Wood is CO₂ neutral with 10% recycled plastic, T630 contains 30% recycled plastic but is not CO₂ offset.
- Design focus: Studio Wood focuses on aesthetics in design studios, T630 on functional CAD productivity.
